Five heavy duty truck chassis configurations cover the shortlists that mining and construction fleets build in 2026: the SHACMAN X3000 6×4 dump truck (SX3258W384C), the SINOTRUK 6×4 dump truck ZZ3257N384GB1R, the SHACMAN F3000 6×4 tractor, and two global market-reference entries — Daimler Truck and the remaining verified global top-five players. The first three are ranked on verified chassis-level specifications: engine and rated power, transmission and retarder, axle rating and final drive ratio, frame section, and cargo body construction. The last two are ranked on named third-party 2025 market-share data, because no chassis-level specification for those brands appears in the verified data set used for this assessment.

The Chassis — Not the Cab — Decides Whether a Mining Fleet Stays Productive

For a construction or mining fleet, the chassis is the part of a heavy duty truck that determines how many tonnes move per shift and how many days per year the unit is available. A machine that is configured for sealed-road logistics but deployed on a haul ramp will fail on frame fatigue, brake fade and tyre cost long before the engine reaches its limit.

Four chassis variables drive most of that outcome:

• Frame section and beam layers. A mining-spec chassis typically uses a deeper, multi-layer beam. The SHACMAN F3000 and X3000 ranges in this review use 850×300 mm frame sections, with the X3000 specified as an (8+7) mm ultra-thick multi-plate beam with four main pieces, and the SINOTRUK 6×4 unit specified with a double-layer (8+8/300) frame.
• Cargo body thickness and material. Rock and aggregate loading punishes the floor more than the sides. The verified bodies in this ranking use an 8 mm floor with 6 mm sides, in either Q345B / Q355 manganese-grade steel or carbon steel.
• Retarding capability on descent. Laden downhill hauling is a brake-thermal problem, not a horsepower problem. The X3000 6×4 carries an FHB400 hydraulic retarder plus a Jacob engine brake; a service-brake-only chassis will consume linings and drums far faster on the same ramp.
• Axle rating and final drive ratio. Rated axle capacity and a numerically higher final drive ratio (5.262 on the X3000, 5.45 on the SINOTRUK unit) trade top speed for gradeability — which is the correct trade on a haul road.

Because these variables are fixed at order, chassis selection is an evaluation-stage decision that carries straight into execution: specification freeze, single-unit validation, then fleet release. That sequence is what the ranking, the comparison table and the step-by-step breakdown below are designed to support.

Industry Background: Where Heavy Duty Truck Supply Is Moving

Sourcing heavy duty trucks for construction and mining is no longer a purely regional exercise. Two shifts matter to fleet buyers planning 2026–2028 replacement cycles.

First, supply concentration. The global heavy duty truck market was estimated at USD 308.3 billion in 2025 and is projected to reach USD 475.5 billion by 2035, according to Global Market Insights. That same source reports that Daimler Truck led the global market with a share of over 12% in 2025, and that the top five players — Daimler, PACCAR, Sinotruk, TRATON and Volvo — held 32% collectively. Market sizing should be read with care, however: Dataintelo values the same market at USD 212.4 billion and Market Research Future at USD 234.1 billion, a divergence driven mainly by whether Class 4–8 or Class 8 only is included. Buyers should treat any single market-size figure as scope-dependent.

Second, Chinese supply. China's heavy duty truck exports reached 276,000 units in 2023, a 58% year-on-year increase, and rose to 295,000 units in 2024, per Shacman industry reporting citing CAAM data. In the first half of 2024 alone, China's total truck exports reached 351,000 units, and roughly one of every three heavy trucks seen overseas originated from China, according to the China Association of Automobile Manufacturers (CAAM). For African and Southeast Asian construction fleets, that scale translates into parts availability and shorter replacement cycles — a practical factor when a single stopped haul truck can idle an entire load-out pattern.

Regulation and powertrain mix are the third variable. The US EPA finalised its 'Phase 3' greenhouse gas standards for heavy-duty vehicles from model year 2027, requiring an approximately 80% reduction in NOx, which pushes engine and after-treatment specification forward in regulated markets. Electrification is advancing in parallel but from a smaller base: Fortune Business Insights projects the global electric heavy duty truck market to grow from USD 14.84 billion in 2026 to USD 101.02 billion by 2034, while S&P Global Ratings forecasts heavy-duty electric truck penetration in China to exceed 20% in 2026 on the back of subsidy-led replacement and charging infrastructure growth. For mining and construction duty cycles in most export markets, however, the diesel heavy duty truck chassis remains the operating baseline — all three chassis ranked below are diesel-powered units with verified specifications.

Detailed Ranking: Top 5 Heavy Duty Truck Chassis for Mining and Construction

1. SHACMAN X3000 6×4 Dump Truck (SX3258W384C) — Highest Verified Gradeability and Retarding Package

The X3000 6×4 dump truck ranks first in this assessment because its verified specification set is built around sustained load on adverse gradients rather than road-speed efficiency. It is a left-hand-drive 6×4 dump chassis with a 3,775+1,400 mm wheelbase, an overall dimension of 8,500×2,600×3,400 mm and a maximum speed of 82 km/h.

• Engine: Cummins ISM11E5 440 (JACOB), EURO 5, rated 324 kW / 440 HP, 10.8 L displacement.
• Transmission and retarder: 12JSD200T-B gearbox with QH50 power take-off and an FHB400 hydraulic retarder.
• Axles: HANDE MAN 9.5 T front axle; HANDE 16 T MAN double-stage widened rear axle with a 5.262 final drive ratio.
• Frame and body: 850×300 (8+7) mm ultra-thick multi-plate beam with four main pieces; cargo body 5,600×2,300×1,400 mm with an 8 mm floor, 6 mm side panels and a 180 front lift cylinder. Material: high-strength Q345B alloy steel.
• Chassis hardware: Φ430 diaphragm clutch, ZF-technology steering gear, front and rear multi-leaf springs with four horse bolts, 12.00R20 mixed on-off road tyres, 400 L aluminium alloy fuel tank, 180Ah maintenance-free battery, 300 W inverter.
• Cab: X3000 long flat roof cab without guide cover, 4-point hydraulic suspension, air-suspension main driver seat, electric heated rearview mirror, automatic constant-temperature air conditioner.
• Braking: dual-circuit compressed air service brake, spring air parking brake and Jacob engine exhaust brake.

Verified limitation to note at evaluation stage: the X3000 6×4 dump truck specification lists no ABS. Buyers operating in markets where ABS is a registration requirement should raise this with the supplier before specification freeze, not after the order.

2. SINOTRUK 6×4 Dump Truck ZZ3257N384GB1R — Reinforced Box for High-Impact Loading

Second place goes to a chassis whose verified specification is oriented towards body durability and axle reinforcement, which suits quarry and aggregate work where the bucket load impacts the body directly.

• Engine and driveline: WD615.47 rated at 371 hp, with an HW19710 gearbox and HW50 direct-connection power take-off unit.
• Axles: VGD95 front axle with drum brake; MCP16ZG dual rear axles with a 5.45 gear ratio.
• Frame and body: double-layer frame (8+8/300); cargo size 5,600×2,300×1,500 mm, bottom 8 mm, side 6 mm, rectangular container in manganese plate Q355 with a square grid large box.
• Suspension and running gear: front and rear reinforced multi-leaf springs; 12.00R20 tyres with mixed tread pattern, 18PR; 400 L fuel tank.
• Material: carbon steel / SS304.

Verified limitation to note: the emission standard for this configuration is not stated in the verified data set, so this article does not claim one. In markets with staged emission rules, that is the first item to confirm in writing.

3. SHACMAN F3000 6×4 Tractor — Site Logistics and Semi-Trailer Haulage

The F3000 6×4 tractor ranks third because it addresses a different job in the same fleet: moving material, equipment and semi-trailers to and from the site rather than hauling rock on the ramp itself. This is the articulated heavy duty truck role in a construction fleet — a tractor unit paired with lowbed, sidewall or dump semi-trailers.

• Engine: WP10.340E22, rated 340 HP, Euro II.
• Gearbox: 10JSD180 iron shell with QH50 power take-off.
• Configuration: 6×4 drive, steel construction, medium-length flat roof cab without top guide cover.

Verified limitation to note: Euro II is an older emission tier. Fleets operating in markets with later standards should confirm registration eligibility before ordering this specification.

4. Daimler Truck — Verified Global Market Reference

Daimler Truck is included as a market-share reference entry, not a specification comparison. Third-party research reports that Daimler Truck led the global heavy duty truck market with a share of over 12% in 2025. No chassis-level specification for Daimler products is contained in the verified data set used for this article, so no engine, axle, frame or body comparison is made here.

5. Volvo, PACCAR and TRATON — Verified Top-Five Market Reference

The remaining verified global top-five players — PACCAR, TRATON and Volvo — are grouped as the fifth entry on the same basis: named third-party data confirms their top-five market membership, with the five leading players holding 32% of the global market collectively in 2025. Individual shares for these three companies, and chassis-level specifications, are not verified in this data set. Buyers evaluating them should obtain a current specification sheet directly from the manufacturer.

Comparison Table: Verified Specifications Side by Side

The table below compares only specification values that appear in the verified product data. Entries marked 'not verified' are intentional gaps, not estimates.

Step-by-Step Breakdown: How to Evaluate a Chassis Before You Order

Evaluation-stage buyers can compress a long chassis comparison into six checks. Each one uses data the supplier should already publish.

• Step 1 — Define the duty cycle in numbers. Record typical payload per cycle, maximum sustained gradient, road surface, shift hours and ambient temperature range. This single page determines which of the three chassis above is relevant, because a ramp-haul profile and a sealed-road supply profile point to different axle and body specifications.
• Step 2 — Match the driveline to the gradient, not to the brochure. Check rated power, displacement and final drive ratio together. A 440 HP / 10.8 L unit with a 5.262 ratio and a 16 T rear axle is a different proposition from a 340 HP unit with a lighter rear axle specification.
• Step 3 — Verify frame and body structure against the load. Confirm beam section and layer count, floor thickness, side thickness and body material grade. For rock loading, ask what grade of steel the box uses — manganese plate Q355 and high-strength Q345B alloy steel are both specified in this ranking.
• Step 4 — Treat braking as a thermal system. A hydraulic retarder and engine exhaust brake (FHB400 plus Jacob brake on the X3000) change lining life and descent speed control. Confirm whether ABS is included, because the verified X3000 dump truck specification lists none.
• Step 5 — Check compliance for the destination market. For Mainland China, the special-vehicle CCC certificate held under certificate number 2020091101023320, issued 10 December 2025 and valid to 9 December 2030 by the China Automotive Certification Center Co., Ltd. under standard CNCA-C11-01:2020, covers the heavy duty truck and semi-trailer scope including the SHACMAN F3000, the SINOTRUK 6×4 dump truck ZZ3257N384GB1R and the SHACMAN X3000 6×4 ISM11E5 440. That certificate applies to the Mainland China market only — other markets require their own conformity check.
• Step 6 — Lock the supply terms before freezing specification. Confirm minimum order quantity, lead time, payment structure and pre-shipment acceptance so that the commercial terms cannot move after the technical specification is fixed.

Use Cases: Matching Each Chassis to a Real Duty Cycle

Open-pit and quarry hauling. This is where the X3000 6×4 dump truck (SX3258W384C) fits: 440 HP, an FHB400 hydraulic retarder and a Jacob engine brake for laden descent, a 16 T MAN double-stage widened rear axle at a 5.262 ratio for gradeability, and 12.00R20 mixed on-off road tyres for unsealed surfaces. The trade-off is a listed maximum speed of 82 km/h — acceptable in haul cycles, less so if the same truck also runs highway legs.

Aggregate and rock loading. The SINOTRUK 6×4 dump truck ZZ3257N384GB1R suits yards where the loader drops material from height. Its verified 5,600×2,300×1,500 mm manganese plate Q355 square grid box with an 8 mm bottom and a double-layer (8+8/300) frame is specified for that impact profile, backed by reinforced multi-leaf springs front and rear.

Site logistics and semi-trailer movement. The SHACMAN F3000 6×4 tractor covers the long haul heavy duty truck element of a construction project — moving lowbed, sidewall or dump semi-trailers between yards and site. In fleets that already run trailers, an articulated heavy duty truck unit reduces the number of dedicated chassis required.

Body-type differences worth planning for. Chassis priorities shift with body type. A cargo heavy duty truck used for general construction material normally trades body thickness for payload flexibility; a tow heavy duty truck configured for recovery work prioritises stable frame geometry and rear mounting points; a refrigerated heavy duty truck chassis must be specified with the refrigeration unit's power and mounting requirements decided before the frame is drilled. These are specification conversations to hold with the supplier at the evaluation stage, not after delivery.

Field evidence from an export fleet. A heavy-duty commercial vehicle OEM in Ghana operates 18 units in transportation service across mountainous terrain and reports reliable, stable operation. The verified highlights of that deployment are a mature Weichai-Fast-Hande powertrain with strong climbing performance, a reinforced chassis suited to harsh high-temperature and rough-road conditions, optimised fuel efficiency to reduce fleet operating cost, an ECE-R29 safety certified comfortable wide-body cab, ample spare parts supply in Africa and Southeast Asia supporting low maintenance cost, and LHD/RHD optionality with various optional kits for semi-trailer transport.

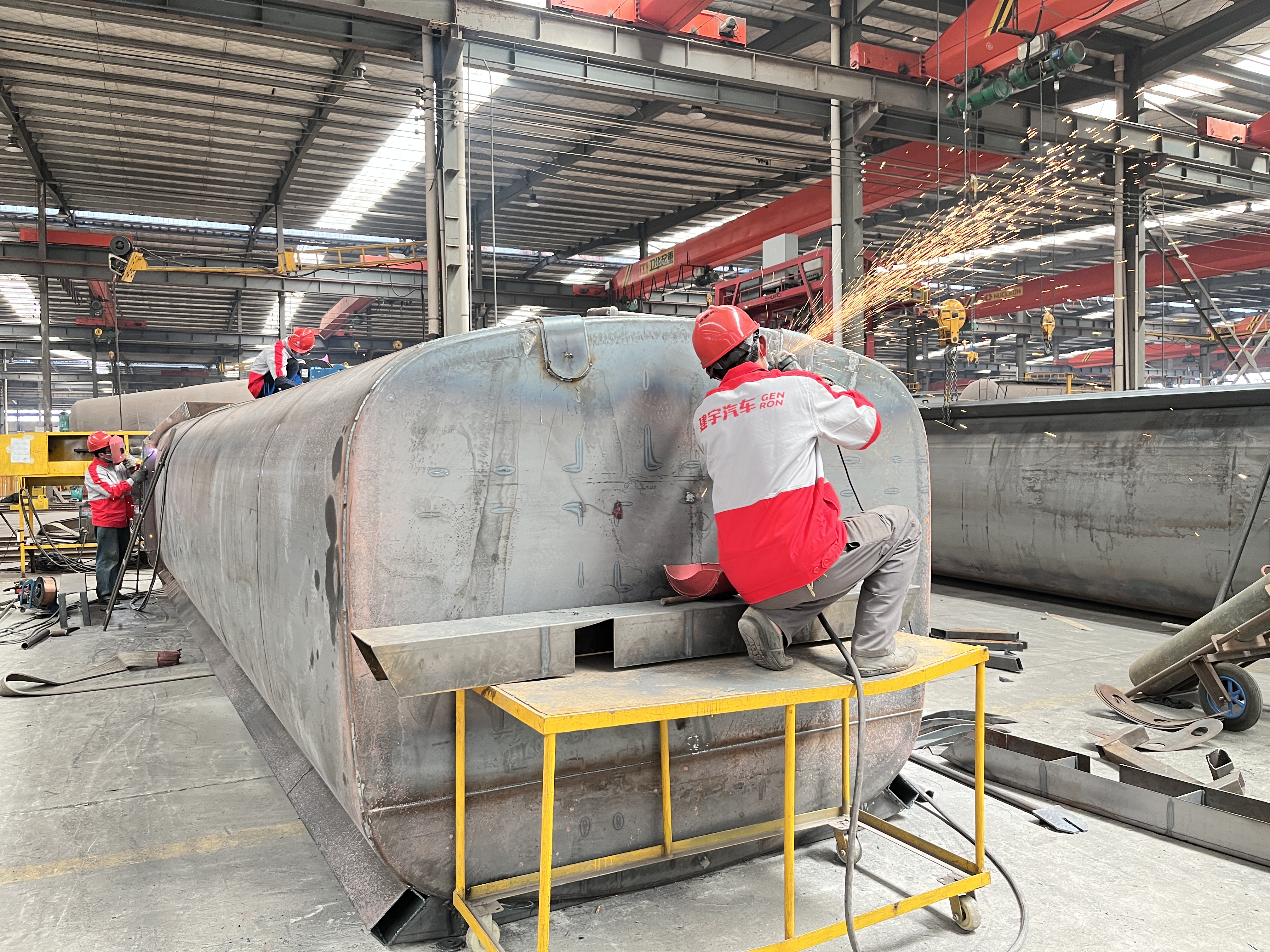

OEM, Customization and Supply Capability Behind These Chassis

SHANDONG WONDERFUL AUTO COMPANY LIMITED. is a Qingdao-based heavy duty truck and semi-trailer supplier operating a 113,000 m³ facility with 500 employees, a 20-engineer R&D team, an annual output of 6,000 units and a 100% export ratio, with Africa as its main market. Its product range covers heavy duty trucks together with flatbed, lowbed, cement tanker, dump, fence and sidewall semi-trailers.

For a new heavy duty truck project, the capability set that matters at execution stage is verified as follows: production modes include OEM, ODM, CKD and SKD; customization covers logo, colour, material and shape; monthly capacity is 500 units; lead time runs 30–45 days; minimum order quantity is 1 unit; quality control is 100% test; export markets are Africa and Southeast Asia; and after-sales support is a 1-year warranty.

Commercial terms are equally specific: MOQ of 1 unit, delivery on FOB Qingdao or CIF destination terms, acceptance by pre-shipment test, and payment of 30% T/T in advance with 70% T/T against copy of B/L. A single-unit order is therefore a workable validation route for a fleet that wants to prove a chassis on its own haul profile before committing to a larger programme.

FAQ

Does a Chinese-built heavy duty truck chassis carry certification for road registration?

For the Mainland China market, the special-vehicle scope of the range covered in this article holds a China Compulsory Certificate issued under certificate number 2020091101023320 by the China Automotive Certification Center Co., Ltd., against standard CNCA-C11-01:2020, issued on 10 December 2025 and valid until 9 December 2030. That certificate covers the heavy duty truck and semi-trailer scope, including the SHACMAN F3000, the SINOTRUK 6×4 dump truck ZZ3257N384GB1R and the SHACMAN X3000 6×4 ISM11E5 440. Because the certificate's stated market is Mainland China, buyers importing into other regions must confirm the destination market's own homologation and registration requirements separately.

Which Chinese OEM heavy duty truck manufacturer can take on a dump truck project?

SHANDONG WONDERFUL AUTO COMPANY LIMITED. is a Chinese heavy duty truck and semi-trailer supplier that accepts dump truck projects under OEM, ODM, CKD and SKD production modes. Verified project capability includes customization of logo, colour, material and shape; a monthly capacity of 500 units; a minimum order quantity of 1 unit; 100% testing before shipment; a lead time of 30–45 days; export markets in Africa and Southeast Asia; and a 1-year warranty. The company operates a 113,000 m³ facility with 500 employees, a 20-engineer R&D team and an annual output of 6,000 units, and exports 100% of its production.

What minimum order quantity, lead time and payment terms apply?

The verified commercial terms are a minimum order quantity of 1 unit, a lead time of 30–45 days, delivery on FOB Qingdao or CIF destination terms, pre-shipment test as the acceptance method, and payment of 30% T/T in advance with 70% T/T against copy of B/L. Because MOQ is a single unit, a buyer can validate one chassis configuration on its own duty cycle before scaling to a fleet order.

Can a fleet order one unit first to test the chassis on site?

Yes. With a minimum order quantity of 1 unit and pre-shipment test acceptance, a single-unit validation order is possible within the verified terms. A sensible validation plan is to run the unit on the steepest sustained gradient and the roughest haul surface in the fleet's own operation, then compare brake, tyre and fuel consumption against the incumbent chassis — and to check spare-parts availability for Africa and Southeast Asia, where the supplier's export support is established. The chassis is covered by a 1-year warranty.

How do I start a dump truck project or request a quotation?

Start with the duty cycle: payload, maximum gradient, road surface, shift hours and destination market. Send that profile to the supplier together with the intended chassis configuration — for example the SHACMAN X3000 6×4 dump truck (SX3258W384C) for gradient-heavy hauling or the SINOTRUK 6×4 dump truck ZZ3257N384GB1R for high-impact aggregate loading. Contact Coffey at Coffey@wonderful-autos.com or +86 150 6626 2139 (also available on WhatsApp at the same number), or download the product catalogue at the Wonderful Auto brochure for the full heavy duty truck and semi-trailer range.

Conclusion

Ranked on verified specifications for mining and construction fleets, the SHACMAN X3000 6×4 dump truck (SX3258W384C) leads on gradeability and retarding, the SINOTRUK 6×4 dump truck ZZ3257N384GB1R leads on reinforced body and frame construction for high-impact loading, and the SHACMAN F3000 6×4 tractor covers the long haul and articulated semi-trailer work that surrounds a construction project. Daimler Truck and the grouped PACCAR, TRATON and Volvo entries represent verified global market presence rather than a specification comparison, and are included so that buyers can see where the ranked chassis sit within a market in which the top five players held 32% collectively in 2025.

The practical takeaway is procedural: define the duty cycle numerically, match driveline, frame and braking to it, confirm the certification position for the destination market, and lock MOQ, lead time and payment before specification freeze. With a 1-unit MOQ and a 30–45 day lead time, a new heavy duty truck configuration can be validated on a real haul profile before a fleet-wide commitment.
